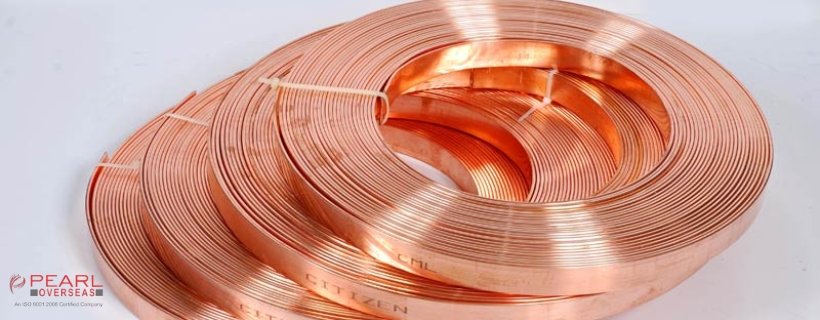

Beryllium Copper Alloy Strip, Copper Alloy Strip, Beryllium Copper C17000 Strip, Beryllium Copper Strip Manufacturer in India
Molybdenum Products is a eminent Beryllium Copper Strip Manufacturer in India. Our Beryllium Copper Strip, acknowledged for features such as high strength, conductivity, plus durability, belongs to the premium-class alloys incorporated in vocation-oriented industries. This makes it a preferred material in various applications where other materials would not stand the same stress of the environment as this alloy does. Two standard grades of Beryllium Copper Strip are ASME SB194 and CDA 172 types that have good elasticity and formability that makes them suitable in the electrical connectors area, springs, and a varied of other mechanical uses. Due to their material composition they have high reliability when subjected to extreme conditions as well as capable of sustaining maximum loads or undergoing frequent usage.
Coming in varying dimensions, Beryllium Copper Strips come in specific customizable thickness as well as width for the purpose of fitting different uses. Standard thicknesses may vary between 0.1 mm to 3 mm, while the width may vary depending on the clients needs. Beryllium Copper Strips are also provided in both, worked and annealed states depending on the malleability and hardness needed from the metal in the particular use. Manufacturing is highly standardized and involves very strict quality assurance so that each batch of manufactured components exhibits the same high degree of accuracy and reliability, a factor that is important in areas such as aerospace, medical and electronics manufacturing.
CuBe2 Strip, Beryllium Copper Alloy 25 Strip, Beryllium Copper Strip Manufacturers in India
Molybdenum Products is a well-known Beryllium Copper Strip Suppliers in India. Our Beryllium Copper Strip is also available in polished and coated form to improve the properties like oxidation resistance and Conductivity. These Beryllium Copper Alloy Strips are made available both in coil and cut to strip form and bare the credibility of industry benchmarks like ASME SB194 and CDA 172. The specifications coupled with flexibility makes Beryllium Copper Strips an ideal product among manufacturing industries looking for materials capable of delivering a performance on industrial standards. We are also a leading Beryllium Copper C17200 Manufacturer in India.
Beryllium Copper Strip Specification Table
| Specification | Details |
| International Specification | Strips: ASTM B194, AMS 4530, 4532; SAE J461, 463, RWMA Class 4 |
| European Standards | CuBe2, Alloy 25, QBe2, BrB2, DIN 2.1247, CW101C to EN |
| Most Commonly Used Tempers |
Strips: A(TB00), 1/4 H(TD01), 1/2 H(TD02), H(TD04) Sheets: A(TB00), 1/4 H(TD01), 1/2 H(TD02), H(TD04), AT(TF00) |
| Available Sizes | Custom Diameter & Sizes, Random Mill Lengths |
| Available Products (Forms) | Round Strips, Sheets (Custom shapes available upon request) |
Types of Beryllium Copper Strip
Chemical Composition Of Beryllium Copper Strip
| Element | Value |
| Cu | Remainder |
| Ni + Co | 0.20 min |
| Ni + Co + Fe | 0.6 max |
| Be | 1.80 – 2.00 |
| Al | 0.20 max |
| Si | 0.20 max |
Mechanical Characteristics of Beryllium Copper Strip
| Density | 8.25 g/cm3 |
| Melting Point | 982 °C (1800 °F) |
| Tensile Strength | 165 ksi, 1138 MPa |
| Yield Strength (0.2%Offset) | 140 ksi, 965 MPa |
| Elongation | 3 % |
Application of Beryllium Copper
- Construction
- Automotive
- Aerospace
- Oil and Gas
- Chemical Processing
- Food and Beverage Industry
- Medical and Pharmaceutical
- Energy Sector
Packing of Beryllium Copper
Each order is further processed based on the customer’ s specifications, including packing for exports like wooden case, pallet or as per the customer’s need.
- Wooden Boxes
- Jute Bags
- Shrink Wrap
- Carton Boxes
Most Popular Types Of Beryllium Copper Strip
| Beryllium Copper Strip Products |
| Beryllium Copper Strip Supplier |
| C17200 Beryllium Copper Alloy Strip |
| Beryllium Alloy C17200 Strips |
| C17200 Copper Strip Exporter |
| Copper Beryllium Alloy C172 Strips |
| UNS C17200 / CDA 172 Strip Supplier |
| Beryllium Alloy 25 Strips |
| C17200 Beryllium Strip Exporter |
| Copper C17200 Strips Distributor |
| Beryllium Copper Strip Alloy 25 |
Beryllium Copper Strip Manufacturers and Supplier in India
Beryllium Copper Strip suppliers in India
Molybdenum Products is a Certified Pure Beryllium Copper Strip Supplier and Exporter in India, UAE, USA, Africa, Europe, and other global regions. Our clients are increasing daily, so we export plenty of Beryllium Copper Alloy Strip to new ports monthly to address global demands. These strength make us the leading Beryllium Copper Alloy Strip Dealers in India.
