Molybdenum Rod Supplier, Molybdenum Round Bar Manufacturer, ASME SA287 Molybdenum Round Bar Supplier, ASTM A387 Alloy Rod Exporter, Molybdenum Rod Manufacturers in India
Molybdenum Products is one of the most highly acclaimed Molybdenum Rod Manufacturers in India. Products we offer are 365 Pure Molybdenum Rod, ASME SA387 Molybdenum Rod, Chromium Molybdenum Rod ASTM B387 Type 361 and 364 Grade Rod. All of the Molybdenum Rods are made to strict specifications to create superior strength and performance where high temperature and corrosion resistance are requirements.
For specialized industries such as aerospace, nuclear, and energy 365 Pure Molybdenum Rods, and ASME SA387 Molybdenum Rod are manufactured with extreme accuracy. Our products follow ASTM B387 standard hence providing high strength, durability and optimum performance in strenuous applications. Our range of products consists of the Chromium Molybdenum Rod ASTM B387 Type 361 among others The range of products is available in forms with different size and customizable specifications to meet various needs.
ASTM A387 Alloy Steel Round Bars, Molybdenum Rods Suppliers, Molybdenum Mo-1 Bar, ASTM B387 Mo-1 Rod, Molybdenum Rod Supplier in India
Molybdenum Products is reputable Molybdenum Rod Manufacturer and Supplier in India. Our company majorly focus on the quality of Pure Molybdenum Bright Bar along with customer satisfaction. Having affordable Mo1 Molybdenum Rod while offering various types of products show that we can meet industries requirements, which are long-lasting and have the best quality. Check our comprehensive Molybdenum Rod price list, you can send us mail at export@pearlshims.com. We are also a leading Molybdenum Sheet Manufacturer in India.
Molybdenum Rod Specification Table
| Product | Molybdenum Rod |
| Standard | ASTM B387, Type 361/364 |
| Process | Drawing, swaging |
| Purity | Mo≥99.95% |
| Size | 0.16”~6.0” diameter x L |
| Surface | Grinding, Finish turning, Black Oxide, Chemically clneaned |
Molybdenum Rod Manufacturer – Types
Molybdenum Rod Supplier – Size Chart
| Diameter[mm] | Length[mm] | Weight[kg] |
| 2.000 | 500 – 3.000 | 0.032 |
| 3.00 | 500 – 3.000 | 0.072 |
| 3.175 | 500 – 3.000 | 0.081 |
| 4.000 | 500 – 3.000 | 0.128 |
| 4.750 | 500 – 3.000 | 0.181 |
| 5.000 | 500 – 3.000 | 0.200 |
| 6.000 | 500 – 3.000 | 0.288 |
| 6.350 | 500 – 3.000 | 0.323 |
| 7.000 | 500 – 3.000 | 0.392 |
| 7.925 | 500 – 3.000 | 0.503 |
| 8.000 | 500 – 3.000 | 0.512 |
| 9.000 | 500 – 3.000 | 0.649 |
| 9.525 | 500 – 3.000 | 0.726 |
| 9.525 | 500 – 3.000 | 0.726 |
| 10.000 | 500 – 3.000 | 0.801 |
| 12.000 | 500 – 2.000 | 1.153 |
| 12.000 | 500 – 2.500 | 1.153 |
| 12.700 | 500 – 2.000 | 1.291 |
| 12.700 | 500 – 2.000 | 1.291 |
| 13.000 | 500 – 2.000 | 1.353 |
Properties of Molybdenum Rod Supplier
| Molecular Weight | 95.94 |
| Appearance | Silvery |
| Melting Point | 2623 °C |
| Boiling Point | 4639 °C |
| Density | 10280 kg/m3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 5.2 microhm-cm @ 0 °C |
| Electronegativity | 1.9 Paulings |
| Heat of Fusion | 6.6 Cal/gm mole |
| Heat of Vaporization | 128 K-Cal/gm atom at 4612 °C |
| Poisson’s Ratio | 0.31 |
| Specific Heat | 0.0599 Cal/g/K @ 25 °C |
| Tensile Strength | N/A |
| Thermal Conductivity | 1.38 W/cm/K @ 298.2 K |
| Thermal Expansion | (25 °C) 4.8 µm·m-1·K-1 |
| Vickers Hardness | 1530 MPa |
| Young’s Modulus | 329 GPa |
Chemical Composition Of Molybdenum Rod Manufacturer
Grade |
The impurity content is not more than % | |||||||
| Fe | Ni | Al | Si | Mg | C | N | O | |
| Mo-1 | 0.01 | 0.005 | 0.002 | 0.01 | 0.005 | 0.01 | 0.003 | 0.008 |
| Mo-2 | 0.01 | 0.005 | 0.005 | 0.01 | 0.005 | 0.01 | 0.003 | 0.02 |
Mo Bar Size Chart
| Diameter (inch) | Length (inch) | Diameter Tolerance (inch) | Length Tolerance (inch) |
| 0.08 – 0.40 | <315 | ±0.005 | +0.08, -0 |
| 0.40 – 0.80 | <118 | ±0.010 | +0.08, -0 |
| 0.80 – 4.00 | <78 | ±0.015 | +0.08″, -0 |
| >4.00 | <40 | ±0.025 | +0.08, -0 |
Mechanical Characteristics of Molybdenum Rod Supplier
| Tensile Strength | KSI (MPa)-RT | 150 (1034) |
| KSI (MPa)-500°C | 75 (517) | |
| KSI (MPa)-1000°C | 25 (172) | |
| Elongation | % in 1.0″. | 12 |
| Typical Hardness | HV10 | >220 |
| Modules of Elasticity | GPa | 320 |
Molybdenum Bar’s Composition Standard
| Molybdenum Chemistry |
| Minimum % 99.97 |
Standard Molybdenum Alloy Steel Rod
| MO007900 | Diameter:6.0mm, Purity:99.9%, Condition:Centreless ground |
| MO007901 | Diameter:3.0mm, Purity:99.9%, Condition:Centreless ground |
| MO007902 | Diameter:1.5mm, Purity:99.9%, Condition:Centreless ground |
| MO007903 | Diameter:2.0mm, Purity:99.9%, Condition:Centreless ground |
| MO007904 | Diameter:4.0mm, Purity:99.9%, Condition:Centreless ground |
| MO007905 | Diameter:5.0mm, Purity:99.9%, Condition:Centreless ground |
| MO007906 | Diameter:5.0mm, Purity:99.98% |
| MO007907 | Diameter:3.5mm, Purity:99.9%, Condition:Centreless ground |
| MO007908 | Diameter:1.25mm, Purity:99.9%, Condition:Centreless ground |
| MO007910 | Diameter:8.0mm, Purity:99.9%, Condition:Centreless ground |
| MO007920 | Diameter:10.0mm, Purity:99.9%, Condition:Centreless ground |
| MO007922 | Diameter:12mm, Purity:99.9%, Condition:Centreless ground |
| MO007926 | Diameter:15.0mm, Purity:99.9%, Condition:Centreless ground |
| MO007931 | Diameter:20.0mm, Purity:99.9%, Condition:Centreless ground |
| MO007945 | Diameter:25mm, Purity:99.9%, Condition:Centreless ground |
| MO007950 | Diameter:30mm, Purity:99.9%, Condition:Centreless ground |
| MO007960 | Diameter:50mm, Purity:99.9%, Condition:Centreless ground |
| MO007975 | Diameter:75mm, Purity:99.9%, Condition:Centreless ground |
| MO007995 | Diameter:100mm, Purity:99.9%, Condition:Centreless ground |
Molybdenum Bars Thermal Properties
| Properties | Metric | Imperial |
| Thermal expansion coefficient (@20°C/68°F) | 5.35 µm/m°C | 2.97 µin/in°F |
| Thermal conductivity | 138 W/mK | 958 BTU in/hr.ft².°F |
ASTM A240 SS J4 Molybdenum Rod Manufacturer - Chemical Composition
Grade |
The impurity content is not more than % | |||||||
| Fe | Ni | Al | Si | Mg | C | N | O | |
| Mo-1 | 0.01 | 0.005 | 0.002 | 0.01 | 0.005 | 0.01 | 0.003 | 0.008 |
| Mo-2 | 0.01 | 0.005 | 0.005 | 0.01 | 0.005 | 0.01 | 0.003 | 0.02 |
Bars’s Made Of Titanium-Zirconium-Molybdenum (TZM)
| Diameter[mm] | Length[mm] | Quality | Weight[kg] |
| 4.750 | 500 – 3.000 | ground | 0.181 |
| 6.000 | 500 – 3.000 | ground | 0.288 |
| 6.350 | 500 – 3.000 | ground | 0.323 |
| 8.000 | 500 – 3.000 | ground | 0.512 |
| 10.000 | 500 – 3.000 | ground | 0.801 |
| 12.700 | 500 – 2.000 | forged | 1.291 |
| 15.875 | 500 – 2.000 | ground | 2.018 |
| 16.000 | 500 – 1.600 | forged | 2.05 |
| 18.000 | 500 – 2.000 | forged | 2.594 |
| 19.050 | 500 – 1.500 | ground | 2.906 |
| 20.000 | 500 – 2.000 | forged | 3.203 |
| 22.225 | 500 – 2.000 | forged | 3.955 |
| 25.000 | 500 – 2.000 | forged | 5.004 |
| 25.400 | 500 – 1.900 | forged | 5.166 |
| 26.670 | 500 – 1.800 | forged | 5.695 |
| 30.000 | 500 – 1.600 | forged | 7.206 |
| 31.750 | 500 – 1.400 | forged | 8.072 |
| 33.000 | 500 – 1.400 | forged | 8.72 |
| 35.000 | 500 – 2.000 | forged | 9.809 |
| 40.000 | 500 – 3.000 | forged | 12.811 |
| 45.000 | 500 – 2.000 | forged | 16.214 |
| 49.500 | 500 – 1.600 | forged | 19.619 |
| 55.000 | 500 – 1.800 | forged | 24.221 |
| 63.500 | 500 – 2.800 | forged | 2.05 |
| 70.000 | 500 – 1.800 | forged | 2.594 |
| 80.000 | 500 – 2.500 | forged | 2.906 |
| 90.000 | 500 – 2.300 | forged | 2.906 |
| 100.000 | 500 – 3.000 | forged | 3.203 |
| 140.000 | 300 – 500 | forged | 3.203 |
| 165.000 | 300 – 500 | forged | 3.875 |

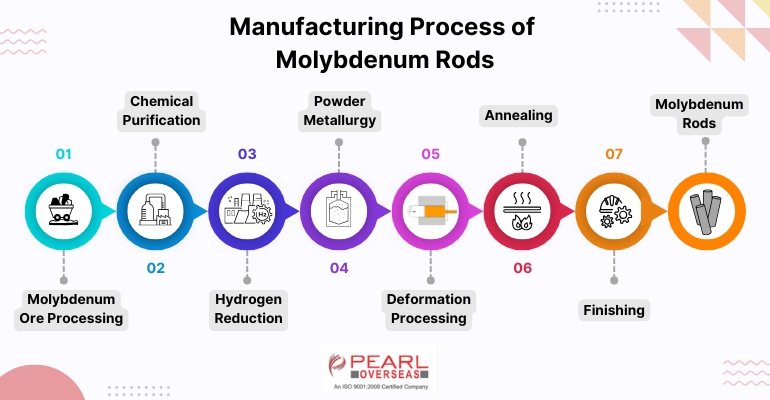

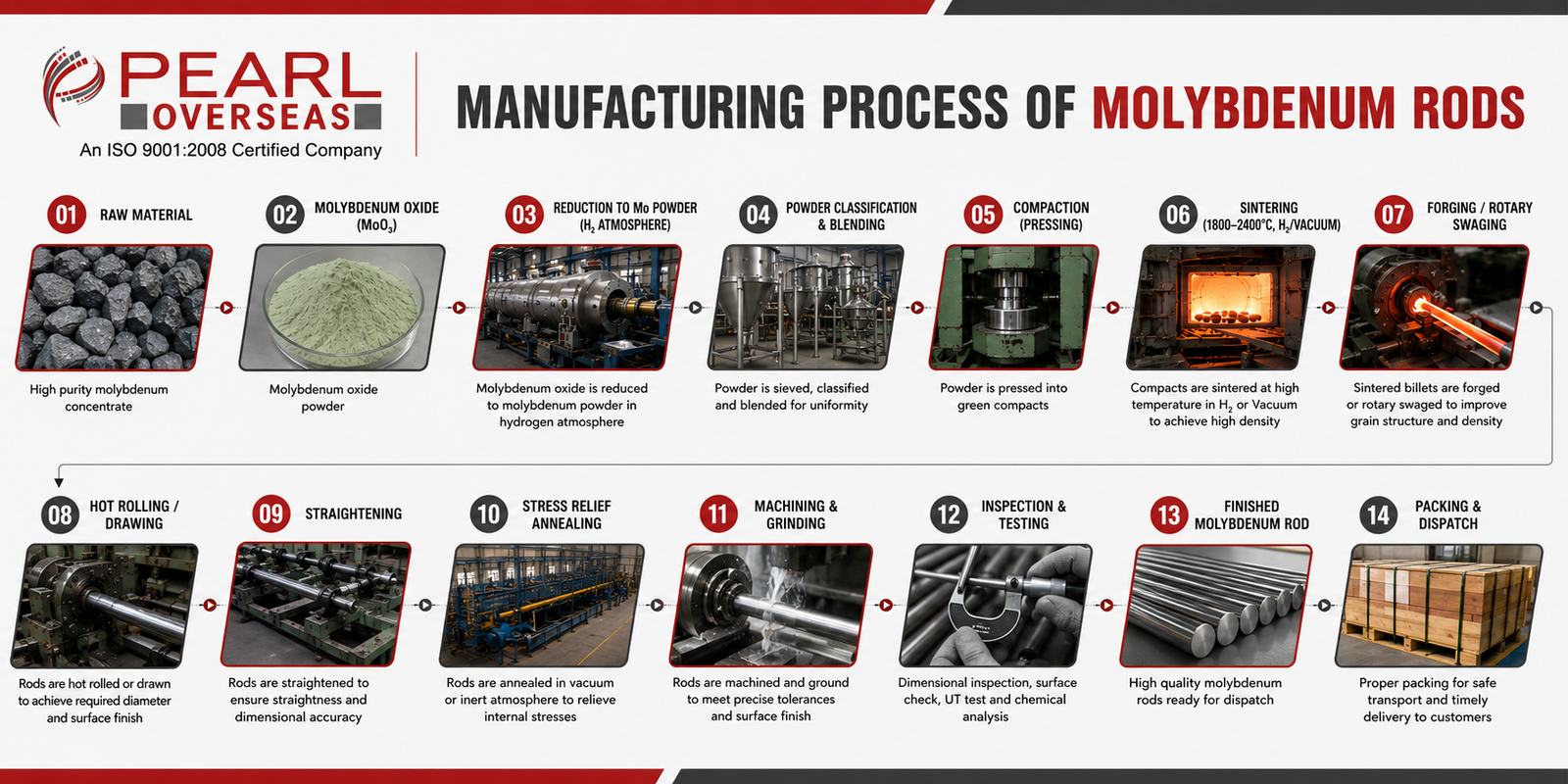

Molybdenum Round Bars Manufacturing Process
Molybdenum Round Bars Standard Length Tolerances (Inches)
| Diameter | .5″ to 12″ | 12″ to 24″ | > 24″ |
| .020 to .100 | ± .010 | ± .015 | ± .0625 |
| .100 – .500 | ± .015 | ± .015 | ± .0625 |
| .500 to 1.000 | ± .015 | ± .030 | ± .0625 |
| 1.000 to 1.500 | ± .030 | ± .0625 | ± .0625 |
ASTM A387 Molybdenum Rod Standard Diameter Tolerances (Inches)
| Diameter | Black/Clean | Ground |
| .020 to .025 | ± .001 | ± .001 |
| .025 to .070 | ± .0015 | ± .001 |
| .070 to .200 | ± .002 | ± .001 |
| .200 to .250 | ± .007 | ± .001 |
| .250 to .437 | ± .007 | ± .0015 |
| .437 to .750 | ± .010 | ± .003 |
| .750 to 1.000 | ± .015 | ± .005 |
| 1.000 to 1.250 | ± .015 | ± .005 |
| 1.250 to 1.750 | ± .025 | ± .005 |
Application of Molybdenum Rod
- Construction
- Automotive
- Aerospace
- Oil and Gas
- Chemical Processing
- Food and Beverage Industry
- Medical and Pharmaceutical
- Energy Sector
Packing of Molybdenum Rod and Bar
Each order is further processed based on the customer’ s specifications, including packing for exports like wooden case, pallet or as per the customer’s need.
- Wooden Boxes
- Jute Bags
- Shrink Wrap
- Carton Boxes
Most Popular Types Of Pure Molybdenum Bar
| Molybdenum Welding Rod | ASTM A387 Alloy Steel Rod |
| ASME SA387 Alloy Steel Rod | Molybdenum Round Bars |
| Molybdenum Flat Bar | ASME SA387 Molybdenum Rods |
| Molybdenum Threaded Rod | Pure Molybdenum Bar |
| Molybdenum Square Bar | Silicon Molybdenum Rod |
| Chromium Molybdenum Barrel | A387 Molybdenum Rod |
| Molybdenum Barrier Metal | Molybdenum Carbide Rods |
| ASTM A387 Alloy Steel Round Bars | ASME SA387 Molybdenum Round Bars |
| Molybdenum Silicon Rods | SA387 Molybdenum Round Bars |
| Molybdenum Rods | Molybdenum Threaded Rods |
| Molybdenum Carbide Rods | Molybdenum Bars |
| ASTM A387 Alloy Steel Rods | Molybdenum Square Bar |
Molybdenum Rod Manufacturer and Supplier in Indian Cities
Molybdenum Rod Suppliers in India, USA, UAE and Europe
At Molybdenum Products, we approved Pure Molybdenum Rods Supplier and Exporter in India, UAE, USA, Africa, Europe, and other global regions. Our clients are increasing daily, so we export plenty of ASTM A387 Alloy Steel Rod to new ports monthly to address global demands. These strength make us the leading SA387 Molybdenum Round Bars dealers in India.
